RF precision meters can control up to 4 external RF measuring ports, each measuring forward and reflected power by default. The high dynamic range in combination with external couplers covers range from 1W to 60kW. The power conversion algorithms handle multi carrier, peak, average and RMS signals. Also the measured and calculated results along with alarms can be shown in the local LCD.

The EPM 3024 instrument has SNMP support to allow integration into any network management system. The instrument can be configured for VSWR and power limits to give alarms. The alarms can also be configured as SNMP traps sending relevant information to the network control centre.

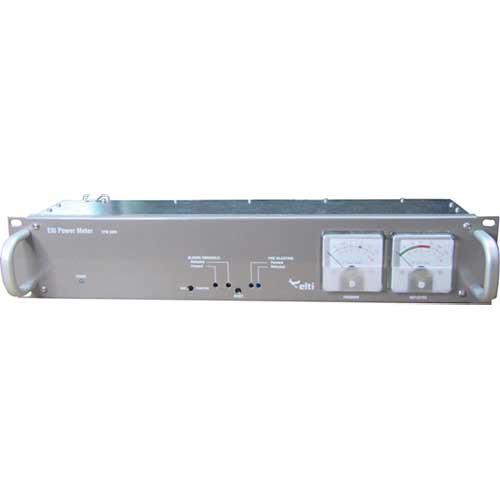

The EPM 3000 series RF precision meters gives an unlimited number of applications to monitor and control the last part of your RF network installation from transmitters to the antenna.

The Elti Advantage:

• Forward and Reflected power measurement
• Correct measurement of RMS power Calculate VSWR (model depending)
• Local display of power and VSWR (model depending)

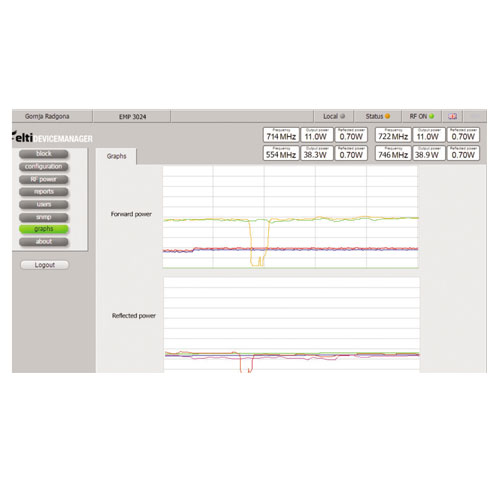

• WEB display of power, VSWR and alarms (model depanding)
• SNMP enabled with traps (model depending)
• High accuracy and easy Elti range of probes integration
• Early warning on combiner, cable and antenna failures (optional)
• Performance management and reports (model depanding)

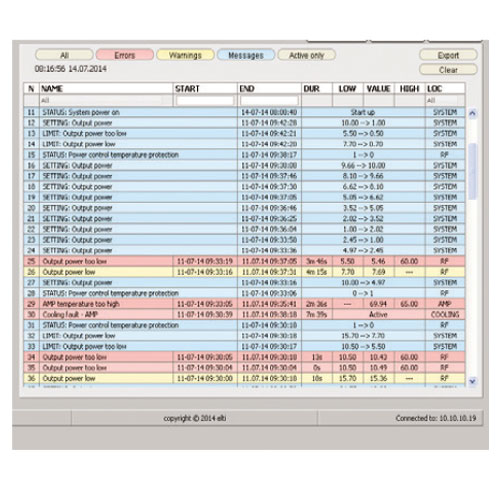

• Event log with time stamp (optional)

Technical specifications:
