FM four field antenna panels
FM four field antenna panels

TYPES:

  • D II/06
  • D II/06-Fe
  • D II/06-L
  • D II/06-L-Fe

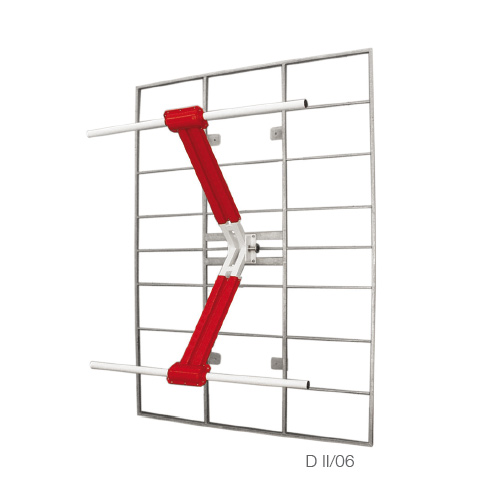

The DII/06 and DII/06-L four field FM broadband antenna panels are designed for applications in professional FM antenna systems, for square and triangular mast-types respectively. Various horizontal and vertical radiation patterns can be achieved with different alignments of the FM antenna panels on the antenna mast.

Both antenna panels are suitable for high power antenna systems, achieved by stacking in tiers. In such cases split system is used, which allows feeding of the antenna system with half power or even full transmitter power when only half antenna system is operating.

Radiating dipoles are anodized aluminium (types DII/06 and DII/06-L). Often are antennas installed in severe weather conditions therefore were developed antennas with hot dip galvanized steel dipoles (types DII/06 Fe and DII/06-L Fe).

  • antenna design for square towers D II/06 (view in PDF)
  • antenna design for triangular towers D II/06-L (view in PDF)
